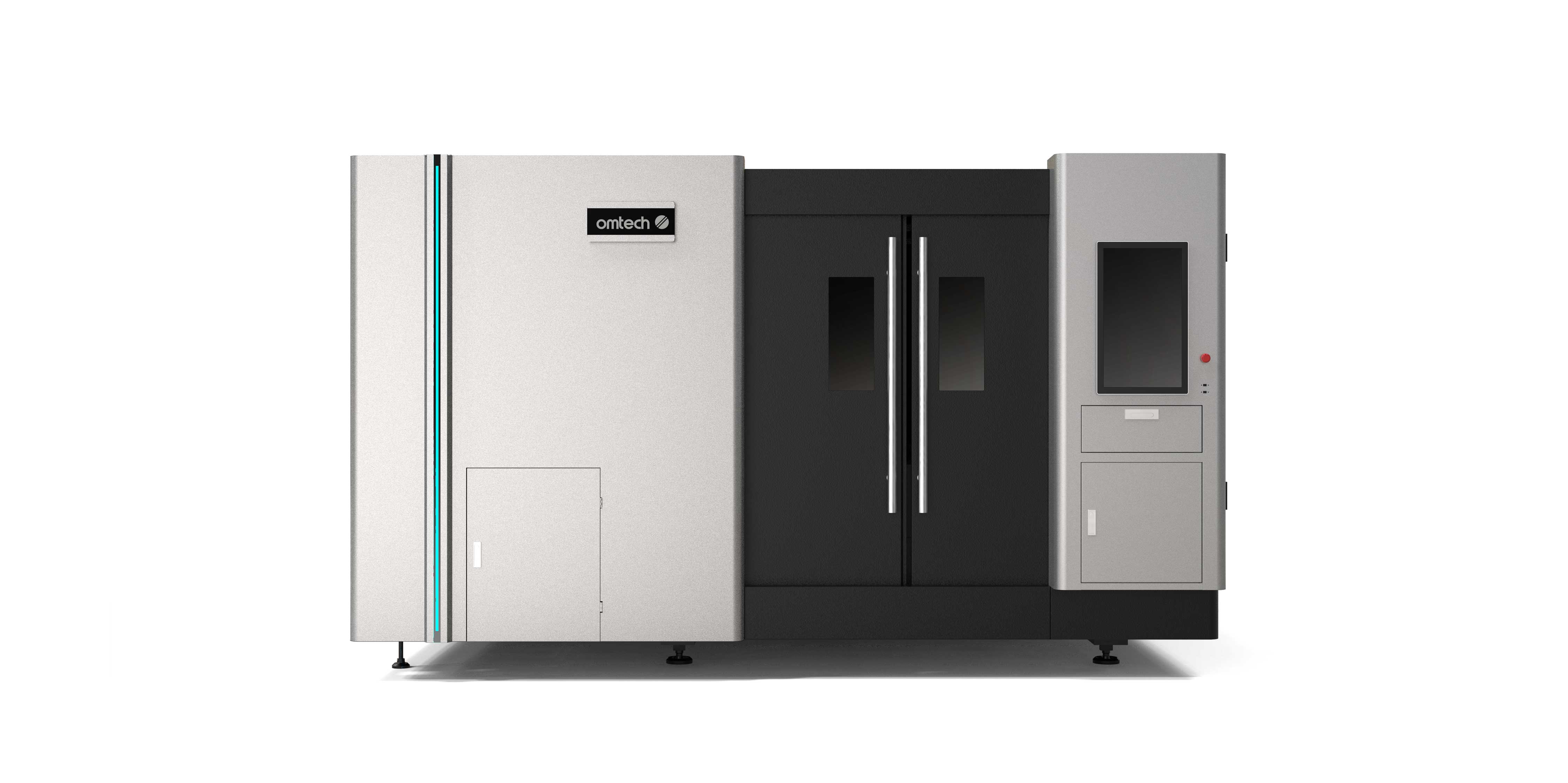

OMTech FC-105SAT Fiber Laser Cutting Machine

FC-105SAT Fiber Laser Cutting Machine

FC-105SAT Fiber Laser Cutting Machine

Built for safe and secure tube cutting with shuffle pull-out exchange bed and fully-enclosed structure for maximum safety.

Price Starting at

Based on MAX 1.5 kW power sourse

$169,999.00

Price Match Guarantee

Financing Price Starting at

Estimate $2409/Month

*Monthly payment depends on your credit, APR as low as 5.09%, all payments are 100% tax-deductible

FC-105SAT Fiber Laser Cutting Machine
FC-105SAT Fiber Laser Cutting Machine
FC-105SAT Fiber Laser Cutting Machine
FC-105SAT Fiber Laser Cutting Machine

Laser Power Source

IPG or MAX


Laser Power

Higher-powered levels available up on request

1.5 kW, 2 kW, 3 kW, 4 kW, 6 kW


Cutting Area

3000 × 1500 mm


OMTech FC-105C, Fiber Laser, product, laser head, lens

What is Included?

  • Industrial Fiber Laser Water Chiller
  • Transformer (SG-40) and Blower
  • Free On-site Installation and US Base Training
  • 2-Year Limited Warranty and Life-time Support
OMTech FC-105C, Fiber Laser, product, water chiller

Built For Safe And Secure Tube Cutting

OMTech’s top-of-the-line FC105SAT is our Fiber Cutter catalog's most well-rounded metal fabrication machine. This fully enclosed fiber machine provides robust security as well as a dual-exchangeable shuffle bed to improve the material feeding and loading efficiency, making it optimal for mass metal cutting tasks. This is an excellent machine for manufacturers performing big and versatile projects on a regular basis. Designed and assembled in the USA, the machine purchase comes with a reliable 2-year warranty, onsite installation plus training, and a lifetime US-based technical support team.

Specs
  • Working Area


    3000 × 1500 mm

  • Positioning Accuracy (X/Y)


    ±0.05 mm

  • Repeated Positioning Accuracy (X/Y)


    ±0.02 mm

  • Max Speed


    2166 mm/s

  • Z-Axis Travel


    330 mm

  • Max Acceleration


    1 G

  • Work Table Max Load


    700 kg

  • Metal Safety Cover


    YES

  • Shuffle Table


    Dual Shuffle Platform (25s)

  • Machine Net Weight


    9150 kg (6 kW)

  • Product Weight


    10600 kg

  • Machine Size


    8330 × 3910 × 2260 mm

  • Tube Cutter Dimensions


    Circular Tube: φ20-220mm; Square Tube:φ20-150mm; Rectangular Tube: Diagonal ≤200mm

  • Power Parameters


    3-Phase AC380V 50 Hz/60 Hz (Compatible with 208V, 220V, 480V power systems via transformer)

  • Machine Packaging Dimensions


    Main Bed + Switch Bed + Base:5000 × 2300 × 2100 mm; Tube Cutting Section + Base: 8200× 1140× 2300; Large Metal Enclosure: 4800 × 2200 × 2250 mm

  • Max Tube Cutting Load


    150Kg

  • Power Protection Level


    IP54

  • Laser Power


    1.5 kw, 2 kW, 3 kW, 4 kW, 6 kW

  • Max Tube Cutting Length


    6000 mm

Equipment Processing Accuracy
  • 30 mm Circular Cut Accuracy


    0.05-0.10 mm

  • 30 mm Adjacent Cut Accuracy


    0.05-0.10 mm

  • 200 mm Adjacent Cut Accuracy


    0.05-0.10 mm

  • 200 mm Diagonal Cut Accuracy


    0.05-0.10 mm

You Choose The Power of The Laser

OMTech FC-44, Laser Cutting Machine, schematics, data table, materials, aluminum, brass, carbon steel, stainless steel OMTech FC-44, Laser Cutting Machine, schematics, data table, materials, aluminum, brass, carbon steel, stainless steel

Laser power can vary from 1 to 6 kW depending on the thickness and quality of the material to be cut. Ask the sales office for more information to choose the right power for your needs.

Dimensions

Warranty

30-DAY MONEY BACK GUARANTEE

OMTech Fiber Cutter guarantee

OMTech Laser Cutter 2-YEAR LIMITED MACHINE WARRANTY

2-YEAR LIMITED MACHINE WARRANTY

Build Your FC

  • Laser Power
  • Accessories
  • Setup Options
  • Warranty
  • Summary

Please choose the Power Option

FC-105SAT
IPG 1500W

Starting at
$179,999.00

FC-105SAT
IPG 2000W

Starting at
$199,999.00

FC-105SAT
IPG 3000W

Starting at
$229,999.00

FC-105SAT
IPG 4000W

Starting at
$289,999.00

FC-105SAT
IPG 6000W

Starting at
$369,999.00

FC-105SAT
Max 1500W

Starting at
$169,999.00

FC-105SAT
Max 2000W

Starting at
$179,999.00

FC-105SAT
Max 3000W

Starting at
$189,999.00

FC-105SAT
Max 4000W

Starting at
$209,999.00

FC-105SAT
Max 6000W

Starting at
$239,999.00

Fiber Laser Chiller

(Included)

Industrial refrigerated water chiller with intelligent dual temperature control mode and optional heating option. It has a massive tank capacity and a high precision temperature accuracy of ±5℃.

Transformer

(Included)

Transformers are used to reduce the high-voltage electricity value in order to maximize safety when operating high-powered machinery.

Choose Air Compressor:

15kW Air Compressor

$13,999.00

Air compressor (ARC-15) is recommended for laser machines 6kW and under. It allows you to withstand long-duration projects by decreasing heat and preventing burning.

22kW Air Compressor

$31,884.00

Air compressor (ARC-22) is essential for laser machines with over 6kW in power. It allows you to withstand long-duration large-scale projects by decreasing heat and preventing burning.

Choose Dust Collector:

4 Core Dust Collector

$13,999.00

Dust collectors (DUC-4) have a 5.5kW fan power. They inhale polluted dust with high efficiency to reduce potential spark hazards and air pollution within manufacturing facilities.

6 Core Dust Collector

$17,999.00

Dust collectors (DUC-6) have a 7.5kW fan power. They inhale polluted dust with high efficiency to reduce potential spark hazards and air pollution within manufacturing facilities.

9 Core Dust Collector

$24,999.00

Dust collectors (DUC-9) have an 11kW fan power, They inhale polluted dust with high efficiency to reduce potential spark hazards and air pollution within manufacturing facilities.

On-Site Installation & Training

(Included)

OMTech provides complimentary on-site machine installation and operations training with every FC machine purchase. With OMTech's highly trained laser technician team, you'll be up and running in no time.

Limited 2-Year Warranty

(Included)

2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts)

FC-105SAT

IPG Power 1500W

Accessories

Fiber Laser Chiller: Prevent overheat and potential fire hazards

Transformer: Optimize electricity in order to maximize safety

Setup Options

On-Site Installation & Training

Warranty

Estimate Price Starting At:

* Estimated machine prices are not final and are subject to change with additional customized on costs, our sales team will contact you to provide a detailed pricing breakdown of your machine.
