OMTech FC-44 Fiber Laser Cutting Machine

FC-44 Fiber Laser Cutting Machine

FC-44 Fiber Laser Cutting Machine

Perfectly designed for a compact space with a cubic covered structure to ensure maximum safety.

Price Starting at

Based on MAX 1.5 kW power sourse

$59,999.00

Price Match Guarantee

Financing Price Starting at

Estimate $849/Month

*Monthly payment depends on your credit, APR as low as 5.09%, all payments are 100% tax-deductible

FC-44 Fiber Laser Cutting Machine
FC-44 Fiber Laser Cutting Machine
FC-44 Fiber Laser Cutting Machine

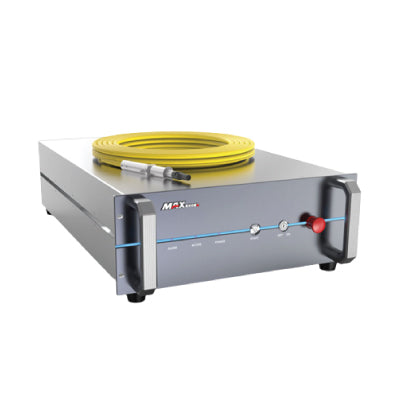

Laser Power Source

IPG or MAX


Laser Power

Higher-powered levels available up on request

1.5 kW, 2 kW, 3 kW


Cutting Area

1300 × 1300 mm


OMTech FC-105C, Fiber Laser, product, laser head, lens

What is Included?

  • Industrial Fiber Laser Water Chiller
  • Transformer (SG-40) and Blower
  • Free On-site Installation and US Base Training
  • 2-Year Limited Warranty and Life-time Support
OMTech FC-105C, Fiber Laser, product, water chiller

Designed For a Safe & Compact Shop

OMTech FC-44 was engineered specifically to meet growing business demands. With a 4.27 × 4.27 ft sawtooth working table, cubic safety-covered structure, and pull-out platform, this compact machine easily fits into densely packed operational spaces while delivering pristine metal processing results. Designed and assembled in the USA by OMTech’s team of expert laser engineers, the machine is equipped with a 1.5 - 3 kW industry-leading IPG power source, perfect for light to medium metal fabrication.

Specs
  • Working Area


    1300 × 1300 mm

  • Positioning Accuracy (X/Y)


    ±0.05 mm

  • Repeated Positioning Accuracy (X/Y)


    ±0.02 mm

  • Max Speed


    1333 mm/s

  • Z-Axis Travel


    100 mm

  • Max Acceleration


    1 G

  • Work Table Max Load


    30 kg

  • Machine Size


    2985 × 2160 × 2000 mm

  • Machine Net Weight


    1900 kg

  • Metal Safety Cover


    YES

  • Shuffle Table


    Single Pull-Out Platform

  • Machine Packaging Dimensions


    3160 × 2290 × 2230 mm

  • Product Weight


    2865 kg

  • Power Protection Level


    IP54

  • Laser Power


    1.5 kW, 2 kW, 3 kW

  • Power Parameters


    3-Phase AC380V 50 Hz/60 Hz
    (Compatible with 208V, 220V, 480V power systems via transformer)

Equipment Processing Accuracy
  • 30 mm Circular Cut Accuracy


    0.05-0.08 mm

  • 30 mm Adjacent Cut Accuracy


    0.02-0.04 mm

  • 200 mm Adjacent Cut Accuracy


    0.04-0.06 mm

  • 200 mm Diagonal Cut Accuracy


    0.05-0.07 mm

You Choose The Power of The Laser

OMTech FC-44, Laser Cutting Machine, schematics, data table, materials, aluminum, brass, carbon steel, stainless steel OMTech FC-44, Laser Cutting Machine, schematics, data table, materials, aluminum, brass, carbon steel, stainless steel

Laser power can vary from 1.5 to 3 kW depending on the thickness and quality of the material to be cut. Ask the sales office for more information to choose the right power for your needs.

Dimensions

OMTech FC-44, Laser Cutting Machine, schematics, dimensions OMTech FC-44, Laser Cutting Machine, schematics, dimensions

Warranty

30-DAY MONEY BACK GUARANTEE

OMTech Fiber Cutter guarantee

OMTech Laser Cutter 2-YEAR LIMITED MACHINE WARRANTY

2-YEAR LIMITED MACHINE WARRANTY

Build Your FC

  • Laser Power
  • Accessories
  • Setup Options
  • Warranty
  • Summary

Please Choose the Power Option

FC-44
IPG 1500W

Starting at
$76,999.00

FC-44
IPG 2000W

Starting at
$99,999.00

FC-44
IPG 3000W

Starting at
$119,999.00

FC-44
Max 1500W

Starting at
$59,999.00

FC-44
Max 2000W

Starting at
$69,999.00

FC-44
Max 3000W

Starting at
$76,999.00

Fiber Laser Chiller

(Included)

Industrial refrigerated water chiller with intelligent dual temperature control mode and optional heating option. It has a massive tank capacity and a high precision temperature accuracy of ±5℃.

Transformer

(Included)

Transformers are used to reduce the high-voltage electricity value in order to maximize safety when operating high-powered machinery.

Choose Air Compressor:

15kW Air Compressor

$13,999.00

Air compressor (ARC-15) is recommended for laser machines 6kW and under. It allows you to withstand long-duration projects by decreasing heat and preventing burning.

22kW Air Compressor

$31,884.00

Air compressor (ARC-22) is essential for laser machines with over 6kW in power. It allows you to withstand long-duration large-scale projects by decreasing heat and preventing burning.

Choose Dust Collector:

4 Core Dust Collector

$13,999.00

Dust collectors (DUC-4) have a 5.5kW fan power. They inhale polluted dust with high efficiency to reduce potential spark hazards and air pollution within manufacturing facilities.

6 Core Dust Collector

$17,999.00

Dust collectors (DUC-6) have a 7.5kW fan power. They inhale polluted dust with high efficiency to reduce potential spark hazards and air pollution within manufacturing facilities.

9 Core Dust Collector

$24,999.00

Dust collectors (DUC-9) have an 11kW fan power, They inhale polluted dust with high efficiency to reduce potential spark hazards and air pollution within manufacturing facilities.

On-Site Installation & Training

(Included)

OMTech provides complimentary on-site machine installation and operations training with every FC machine purchase. With OMTech's highly trained laser technician team, you'll be up and running in no time.

Limited 2-Year Warranty

(Included)

2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts)

FC-44

IPG Power 1500W

Accessories

Fiber Laser Chiller: Prevent overheat and potential fire hazards

Transformer: Optimize electricity in order to maximize safety

Setup Options

On-Site Installation & Training

Warranty

Estimate Price Starting At:

* Estimated machine prices are not final and are subject to change with additional customized on costs, our sales team will contact you to provide a detailed pricing breakdown of your machine.
